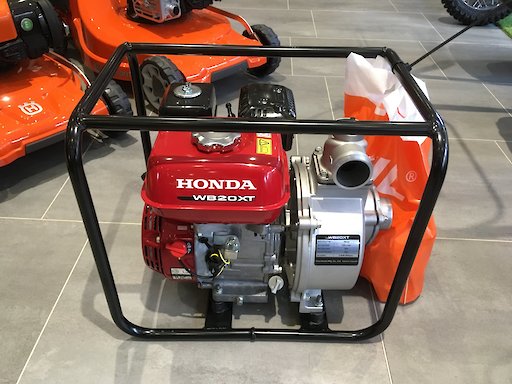

Honda WB20XT Water Pump

Pump

• Maximum output capacity (L/min)
  620
• Inlet/outlet diameter thread type (mm/inches)
  50/2-PF
• Total head (m)
  32
• Suction head (m)
  7.5
• Pressure (bars)
  3.2
• Debris size capacity (mm)
  6

Engine

• Engine Model
  GX120
• Engine type
  4-stroke, OHV,** 1 cylinder
• Displacement (cm³)
  118
• Bore x stroke (mm)
  60 x 42
• Engine speed (rpm)
  3600 max
• Engine net power (kW)
  2.6
• Cooling system
  Forced air
• Ignition system
  Transistor
• Oil capacity (L)
  0.6
• Fuel tank capacity (L)
  2
• Operating time
  1h42 approx
• Starter system
  Recoil
• Sound pressure level at workstation (dB(A))
  88
• Guaranteed sound power level (dB(A))
  102

Dimensions

• Length (mm)
  455
• Width (mm)
  365
• Height (mm)
  420
• Dry weight (kg)
  21
